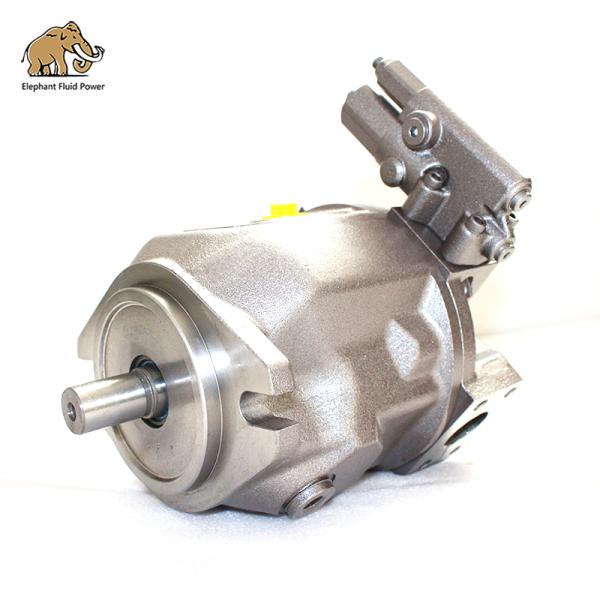

China Made A10VSO28 Hydraulic Piston Pump Excavator Repair
Elephant Fluid Power Provide heavy equipment maintain repair parts,such as hydraulic piston pump,vane pump,gear pump and pump parts.
Our series :Rexroth,Sauer,Danfoss,Eaton,Kawasaki,Komatsu,Etc.
Our A10VSO28 Hydraulic piston pump is applied in excavator repair,maintain,good quality,good price,good service,fast shipment,we have the same quality as original ones,good price,good service,fast shipment.
Technical data:
| Size | 18 | 28 | 45 | 71 | 88 | 100 | 140 | 45 | 71 | 100 | 140 |
| Version | Standard | High speed |
Displacement
geometric, per revolution | | Vg max | cm³ | 18 | 28 | 45 | 71 | 88 | 100 | 140 | 45 | 71 | 100 | 140 |
| Nominal pressure | | pnom | bar | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 |
| Maximum pressure | | pmax | bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Maximum speed 1) | at Vg max | nnom | rpm | 3300 | 3000 | 2600 | 2200 | 2100 | 2000 | 1800 | 3000 | 2550 | 2300 | 2050 |
| Flow | at Vg max and nnom | qV nom | l/min | 59 | 84 | 117 | 156 | 185 | 200 | 252 | 135 | 178 | 230 | 287 |
| at Vg max and n = 1500 rpm | qV 1500 | l/min | 27 | 42 | 68 | 107 | 132 | 150 | 210 | 68 | 107 | 150 | 210 |
| Power | at qV nom and pnom | P | kW | 30 | 39 | 55 | 73 | 86 | 93 | 118 | 63 | 83 | 107 | 134 |
| at qV 1500 and pnom | P 1500 | kW | 12.6 | 20 | 32 | 50 | 62 | 70 | 98 | 32 | 50 | 70 | 98 |
| Torque | at Vg max and pnom | M | Nm | 80 | 125 | 200 | 316 | 392 | 445 | 623 | 200 | 316 | 445 | 623 |
| Weight (approx.) | | m | kg | 12.9 | 18 | 23.5 | 35.2 | 35.2 | 49.5 | 65.4 | 23.5 | 35.2 | 49.5 | 65.4 |
*These values are valid at an absolute pressure of 1 bar in suction port S and for the optimum viscosity range νopt
Delivery time:
We have huge quantity of inventory for complete pumps, motor and some spare parts,
so the leading time is within 3days if have in stock.
If haven't, within 5days if the quantity is less than 50pcs.
It depends on the quantity ordered.
Min. Order:
If the model is in common or the production are in our warehouse.
No MOQ for stocking production.Larger quantity, price will be more favorable.
Deliever Way:
By courier, like the DHL, UPS, Fedex,etc. It's door to door or barn to the door,
usually 5-7 days to arrive.
By air to air port, usually 3-5 days arrive.
By sea to sea port, usually 20-30 days arrive.
If your deliever time is very urgent, the best way is by courier or air.
If not, it's beat by sea.
Our products have been exported to countries such as the United States Germany,Brazil,Canada,India, Turkey, Poland ,Thailand etc. We aim to become a world-class manufacturer of hydraulic products. Our eternal pursuit and objectives is to improve the performance of our products as a starting point and to provide the best products and service to our customers.
